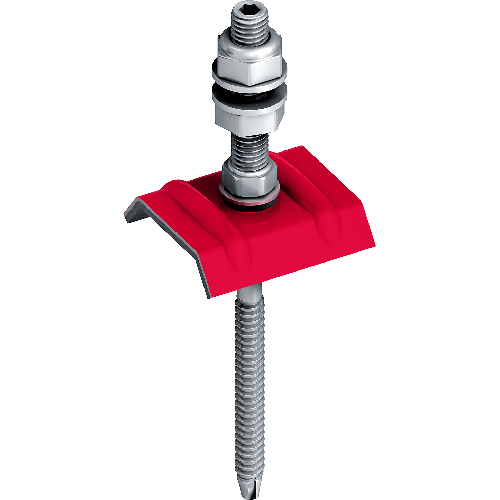

EJOT® JT3-SB-3-8,0xL szolár önmetsző csavar ORKAN-Kalotte-vel

Termékadatok

  • Alkalmazás

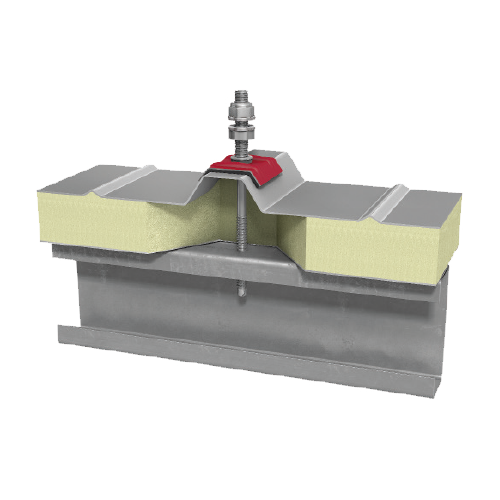

    • Napelemek és napkollektorok tartóvázainak biztonságos rögzítéséhez 1,5 - 3 mm-es acél teherhordó szerkezeteken
    • Előfúrva ≥ 3,0 mm vastagságú acélszerkezetekhez is alkalmazható
    • Nagy szilárdságú acélszerkezetekhez S450GD-ig
  • Tulajdonságok

    • Rozsdamentes acél A2
    • E16 tömítőalátéttel + ORKAN-Kalotte
    • ETA-22/0762


    Műszaki adatok

    • Csavarátmérő: 8,0 mm
    • Behajtó: hatlapú SW5
    • Becsavarozási fordulatszám: max 1300 1/min
  • Előnyök

    • Screw diameter: 8.0 mm
    • A/F5 hexagon drive
    • Installation rotation speed: max. 1300 1/min

    Notice
    The solar fastener components are tailored to your project. Further versions upon request
