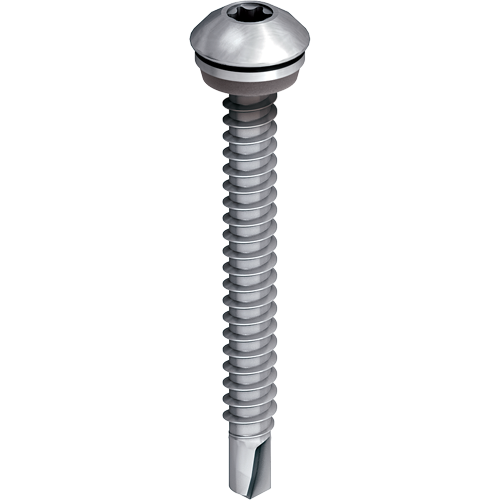

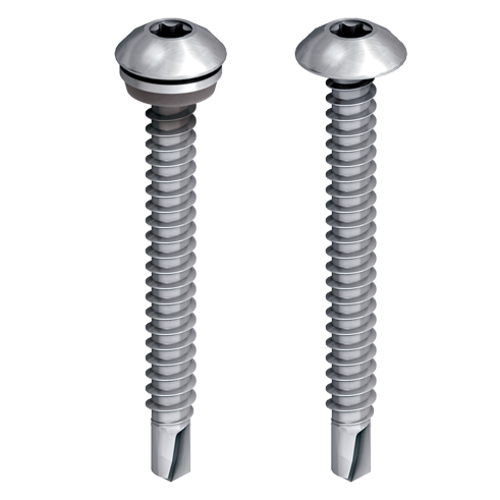

EJOT® self-drilling screw JT3-FR-3-5.5
Specification
-
Applications
- Fastening corrugated profile steel sheet to 1–2.5 mm steel substructure
- For fixing corrugated profile aluminium sheet to 1–2.5 mm aluminium or steel substructure
-
Properties
- A2 stainless steel with hardened drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
-
Technical specifications
- Drilling capacity tI + tII: 1.0 + 2.5 mm
- Drive: Hexalobular TX25
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Length mm | Clamp thickness mm | Unit | |
|---|---|---|---|---|---|---|---|
| JT3-FR-3-5.5x50-E11 | 3592869335 | 5.5 | 11 | 50.0 | 0.0 - 31.0 | Stainless Steel | 250 |
