ejotherm® VT 2G

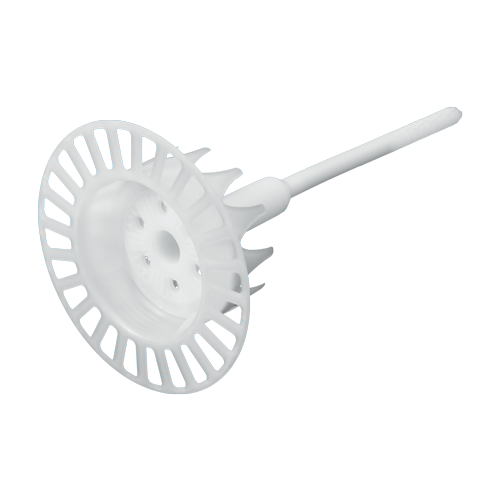

_ejotherm_VT2G_foto1
_ejotherm_VT2G_foto2

Specification

  • Applications

    Specifically matched combination washer for ejotherm STR U 2G for countersunk installation into all mineral wool insulation boards WAP-zg (type WV)



    • ejotherm VT 2G continues to promote the countersunk installation acc. to STR principle in all mineral wool insulation boards with a low tensil strength WAP-zg (type WV)
    • For homogeneous surfaces and even rendering
    • With European Technical Approval (ETA)

  • Properties

    • Low point thermal transmission (Chi value 0.001 W/K)
    • Reduced anchor marks
    • No additional tool required
    • Permanent contact pressure
    • Anchor locates easily in the washer with a firm "click"
    • 100% setting control

  • Technical specifications

    • Washer diameter: 110 mm
    • German DIBt approval: Z-21.2-1769
    • European Technical Approval: ETA-04-0023

    The quantity of anchors can be found in the mineral wool approvals for washers ≥90 mm..

ETICS products are only available from system suppliers

Orderidentifier Article Number Unit
ejotherm VT 2G 8782090008 100

Specifications

Washer diameter
110.0
Orderidentifier
ejotherm VT 2G
Unit
100
