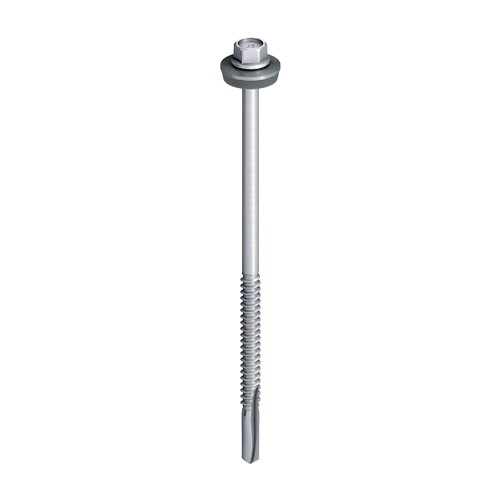

EJOT® self-drilling screw JT3-12-5.5
Specification
-
Applications
- Fastening profiled steel and aluminium sheets and sandwich panels 4–10 mm steel substructure
- Fastening profiled aluminium sheets to 4–12 mm aluminium substructure
-
Properties
- A2 stainless steel with hardened drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1300 rpm
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Length mm | Clamp thickness mm | Fastener material | Unit |
|---|---|---|---|---|---|---|---|
| JT3-12-5.5x40-E16 | 3595611311 | 5.5 | 16 | 40.0 | 0.0 - 11.0 | Stainless Steel | 500 |
Specifications
|
|||||||
| JT3-12-5.5x40-E16 PU100 | 6595611311 | 5.5 | 16 | 40.0 | 0.0 - 11.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x58-E16 | 3595811311 | 5.5 | 16 | 58.0 | 0.0 - 31.0 | Stainless Steel | 250 |
Specifications
|
|||||||
| JT3-12-5.5x58-E16 PU100 | 6595811311 | 5.5 | 16 | 58.0 | 0.0 - 31.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x78-E16 | 3595011311 | 5.5 | 16 | 78.0 | 25.0 - 51.0 | Stainless Steel | 250 |
Specifications
|
|||||||
| JT3-12-5.5x78-E16 PU100 | 6595011311 | 5.5 | 16 | 78.0 | 25.0 - 51.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x98-E16 | 3595111311 | 5.5 | 16 | 98.0 | 45.0 - 71.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x118-E16 | 3595211311 | 5.5 | 16 | 118.0 | 65.0 - 91.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x138-E16 | 3595311311 | 5.5 | 16 | 138.0 | 85.0 - 111.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x158-E16 | 3595411311 | 5.5 | 16 | 158.0 | 105.0 - 131.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x178-E16 | 3595511311 | 5.5 | 16 | 178.0 | 125.0 - 151.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-12-5.5x198-E16 | 3595711311 | 5.5 | 16 | 198.0 | 145.0 - 171.0 | Stainless Steel | 100 |
Specifications
|
