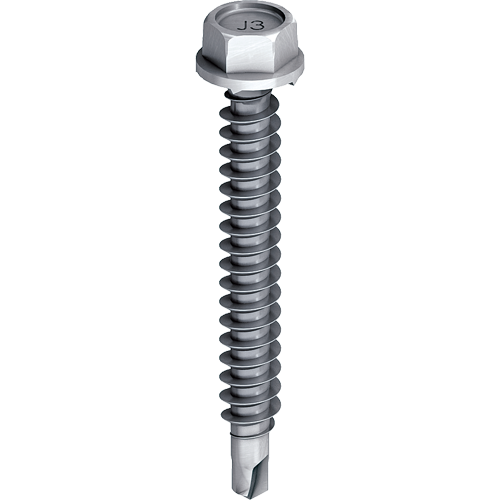

EJOT® Self-drilling screw JT3-X-2-6.0

JT3-X-2-6,0

Specification

  • Applications

    • Fixing standing seam systems (clips) to 0.55 - 1.50 mm steel substructure
    • Fixing standing seam systems (clips) to 0.8 - 1.5 mm aluminium substructure or timber substructure

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Under-head serrations to increase the installation reliability
    • Special thread for thin-walled components
    • High stripping torque
    • Installation without special tools

  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity tI + tII: 1.00 + 1.00 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Unit
    JT3-X-2-6.0x25 7380539301 6.0 0 - none 25.0 500

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    0 - none
    Length
    25.0
    Clamp thickness
    0.0 - 10.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-X-2-6.0x25
    Unit
    500
    JT3-X-2-6.0x36 7380516301 6.0 0 - none 36.0 500

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    0 - none
    Length
    36.0
    Clamp thickness
    0.0 - 20.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-X-2-6.0x36
    Unit
    500
    JT3-X-2-6.0x46 7380517301 6.0 0 - none 46.0 500

    Specifications

    ø
    6.0
    Ø Sealing Washer mm
    0 - none
    Length
    46.0
    Clamp thickness
    0.0 - 30.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-X-2-6.0x46
    Unit
    500
