EJOFAST® self-drilling screw JF3-2H-4.8

JF3-2H-4-8_foto1

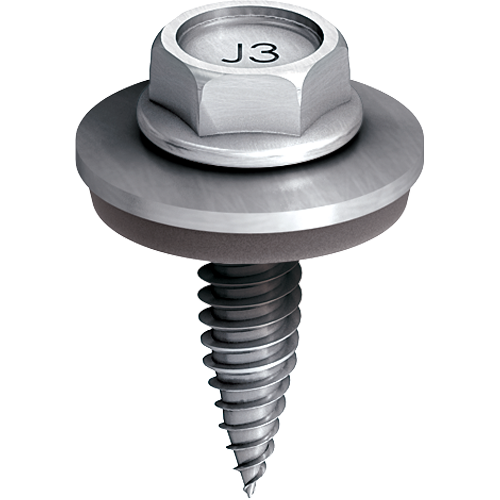

JF3-2H-4-8_foto2

Specification

  • Applications

    • Side lap stitching of profiled steel / aluminium sheets and sandwich panels
    • Suitable for installation with the EJOFAST® JF screwdriver

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under screw head for side lap stitching
    • Non-skid application
    • Fastening with reduced swarf
    • Loose or collated

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 0.88 + 0.88 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JF3-2H-4.8x19-E14 3591977391 4.8 14 19.0 0.0 - 4.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    14
    Length
    19.0
    Clamp thickness
    0.0 - 4.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JF3-2H-4.8x19-E14
    Unit
    500
    JF3-2H-4.8x19-E14 PU100 6591977391 4.8 14 19.0 0.0 - 4.0 100

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    14
    Length
    19.0
    Clamp thickness
    0.0 - 4.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JF3-2H-4.8x19-E14 PU100
    Unit
    100
