Multifix SE1000 Seismic
Specification
-
Applications
Suitable for fastening facades, awnings, wooden structures, metal structures, metal profiles, supports, beams, consoles, railings, grids, sanitary objects, pipelines, cable routes, post-installed rebar applications
-
Properties
- Fire behavior test report
- For heavy duty applications
- Overhead installation
- Water-filled drill holes
- Fastening without expansion pressure, therefore small edge and center distances possible
- Good chemical resistance
- Low odor development
- High flexural and compressive strength
- The cartridge can be used again until the end of its shelf life by replacing the static mixer or by closing it again with the original cap
- State-of-the-art ingredients, complies with the latest REACH regulations
- 100 years service life
-
Technical specifications
Substrates:
- Cracked and non-cracked concrete.
Fastening elements:
- Threaded rods (galvanized, diffusion galvanized or hot-dip galvanized, stainless steel A4, A2 or HCR), reinforcing iron, internally threaded sleeves
Included in delievery
1 mortar cartridge
1 mixing nozzle
| Orderidentifier | Article Number | Unit |
|---|---|---|

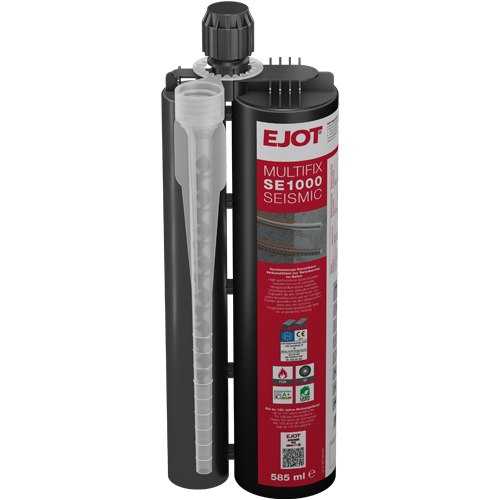

| Mortar cartridge Multifix SE1000 Seismic 585 ml | 9571001000 | 1 |
Specifications
|
Multifix Calculator
Calculate the mortar cartridges required for your project with this calculation tool. It will help you to reduce waste and make your installation more cost-effective.
- Select thread diameter from the list on the far left.
- Select the number of holes to fill by entering them in the text box above the illustration or alternatively use the plus and minus buttons.
- Select the drilling depth using the plus and minus buttons in the illustration.
- Done! The number of mortar cartridges required is now displayed.
