EJOFAST® self-drilling screw JF3-FR-2-5.5

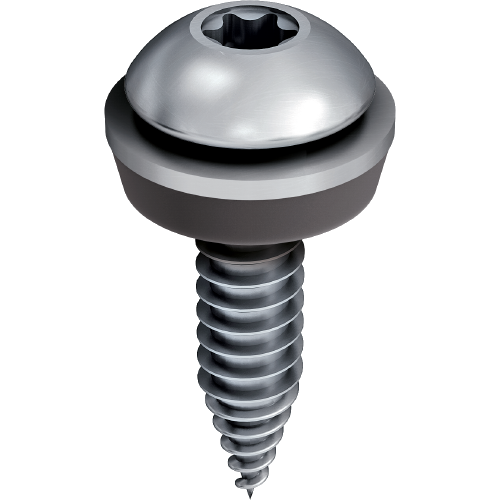

EJOT_EJOFAST_JF3-FR-2_Pos-1_500x500

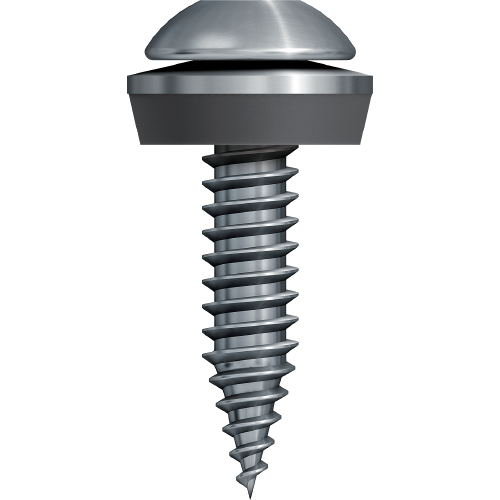

EJOT_EJOFAST_JF3-FR-2_Pos-2_500x500

Specification

  • Applications

    Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:

    • Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
    • Fixing wind deflector sheets to profiled elements

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Non-kid application
    • Fastening with reduced swarf
    • Excellent gripping properties
    • With truss head

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1800 rpm

*JF6 realizat din oțel inoxidabil la cerere

Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
JF3-FR-2-5.5x25-E11 3593292391 5.5 11 25.0 0.0 - 7.0 500

Specifications

ø
5.5
Ø Sealing Washer mm
11
Length
25.0
Clamp thickness
0.0 - 7.0
Fastener material
Stainless Steel
Orderidentifier
JF3-FR-2-5.5x25-E11
Unit
500
