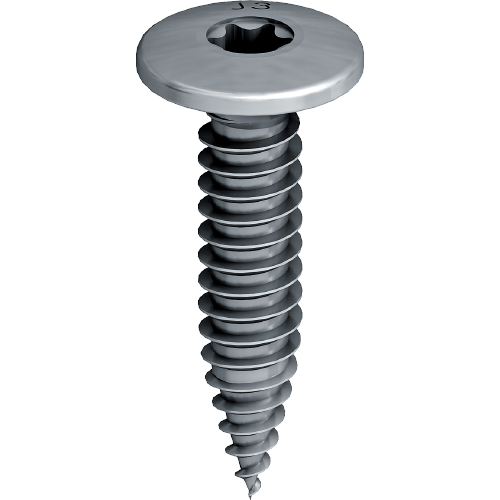

EJOFAST® self-drilling screw JF3-LT-2-5.5 KD12

JF3-LT-2-5,5 KD12

Specification

  • Applications

    • For fixing facade panels to 0,4 - 1,5 mm aluminium substructures without swarfs
    • Can be combined with LT fixed and floating point sleeves

    Note

    Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Pan head

    Benefits



    • To cover slotted holes and large pre-drill diameters
    • Also available in RAL lacquering
    • Flat screw head for aesthetic facade design
    • Fastening with reduced swarf



  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity (tI pre-drilled) tII: 2.0 mm
    • Drive: Hexalobular drive T25
    • Head diameter: 16 mm
    • Head height: 2.0 mm
Orderidentifier Article Number ø mm Length mm Fastener material Unit
JF3-LT-2-5,5x25 7381207301 5.5 25.0 Stainless Steel 500

Specifications

ø
5.5
Length
25.0
Fastener material
Stainless Steel
Orderidentifier
JF3-LT-2-5,5x25
Unit
500
