EJOT® self-drilling screw JT4-FR-4-4.8

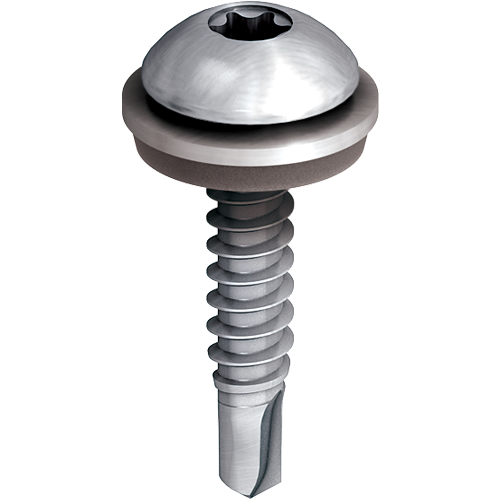

JT4-FR-4-4_8

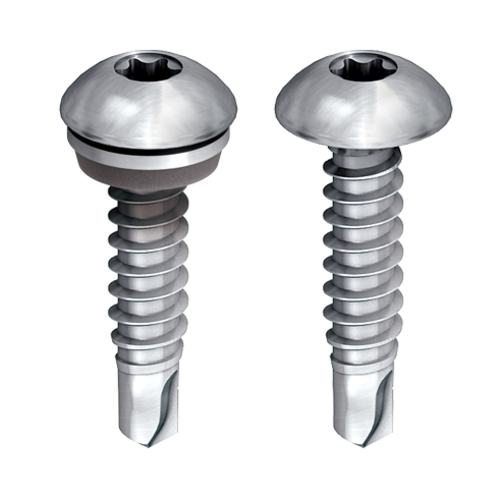

JT4-FR-4-4_8_nw_2016

Specification

  • Applications

    • Fastening aluminium corrugated profile sheets to aluminium substructure ≤ 3 mm
    • Fastening facade panels to aluminium substructure

  • Properties

    • A2 stainless steel
    • With truss head

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity tI + tII: 1.0 + 3.0 mm
    • Priveržimas: Heksalobulinis T25
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT4-FR-4-4.8x19-E11 3501968448 4.8 11 19.0 0.0 - 6.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    11
    Length
    19.0
    Clamp thickness
    0.0 - 6.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-FR-4-4.8x19-E11
    Unit
    500
    JT4-FR-4-4.8x19 7381095300 4.8 0 - none 19.0 0.0 - 9.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT4-FR-4-4.8x19
    Unit
    500
