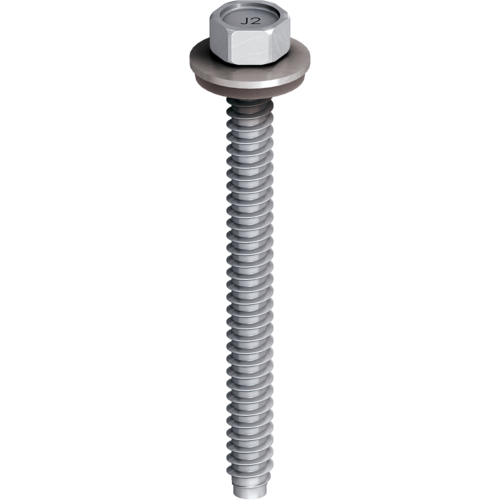

EJOT® self-tapping screw JZ2-6.3
Specification
-
Applications
- For fixing profiled steel sheet to steel substructure
-
Properties
- Case-hardened steel, zinc-plated
- Steel sealing washer, zinc-plated
- Pre-assembled sealing washer
-
Technical specifications
Diameter: 6.3 mm
Drive: Hexagon AF 3/8"
Installation rotation speed: max. 400 rpm
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Clamp thickness mm | Length mm | Unit |
|---|---|---|---|---|---|---|
| JZ2-6.3x19-V16 | 3181121654 | 6.3 | 16 | 0.0 - 12.0 | 19.0 | 500 |
Specifications
|
||||||
| JZ2-6.3x25-V16 | 3181221654 | 6.3 | 16 | 0.0 | 25.0 | 500 |
Specifications
|
||||||
| JZ2-6.3x32-V16 | 3181321654 | 6.3 | 16 | 0.0 | 32.0 | 500 |
Specifications
|
||||||
| JZ2-6.3x38-V16 | 3181421654 | 6.3 | 16 | 0.0 | 38.0 | 500 |
Specifications
|
||||||
| JZ2-6.3x50-V16 | 3181621654 | 6.3 | 16 | 0.0 - 43.0 | 50.0 | 250 |
Specifications
|
||||||
| JZ2-6.3x64-V16 | 3181821654 | 6.3 | 16 | 0.0 - 57.0 | 64.0 | 250 |
Specifications
|
||||||
| JZ2-6.3x80-V16 | 3182021654 | 6.3 | 16 | 13.0 | 80.0 | 250 |
Specifications
|
||||||
| JZ2-6.3x90-V16 | 3182121654 | 6.3 | 16 | 23.0 - 83.0 | 90.0 | 100 |
Specifications
|
||||||
| JZ2-6.3x100-V16 | 3182221654 | 6.3 | 16 | 33.0 - 93.0 | 100.0 | 100 |
Specifications
|
||||||
| JZ2-6.3x125-V16 | 3112421651 | 6.3 | 16 | 58.0 - 118.0 | 125.0 | 100 |
Specifications
|
||||||
| JZ2-6.3x150-V16 | 3182621651 | 6.3 | 16 | 83.0 - 143.0 | 150.0 | 100 |
Specifications
|
||||||
| JZ2-6.3x175-V16 | 3182721651 | 6.3 | 16 | 108.0 - 168.0 | 175.0 | 100 |
Specifications
|
||||||
| JZ2-6.3x200-V16 | 3182821651 | 6.3 | 16 | 133.0 | 200.0 | 100 |
Specifications
|
