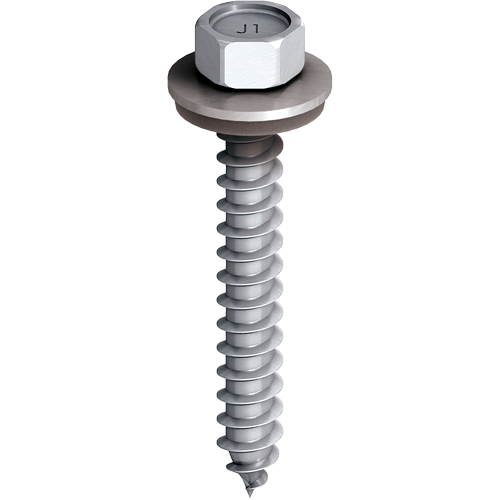

CORREMAKS® self-tapping screw JA1-6.5

JA1-6,5

Specification

  • Applications

    • Side lap stitching of profiled steel sheets in highly corrosive environments
    • Fastening profiled steel sheets to timber substructures in highly corrosive environments

  • Properties

    • Stainless steel HCR – 1.4529
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Highest corrosion protection class

  • Technical specifications

    • Diameter: 6.5 mm
    • Drive: Hexagon AF 3/8"

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Unit
    JA1-6.5x22-E16 3113211319 6.5 16 500

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    22.0
    Clamp thickness
    0.5 - 12.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JA1-6.5x22-E16
    Unit
    500
    JA1-6.5x38-E16 3113411319 6.5 16 500

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    38.0
    Clamp thickness
    0.5 - 28.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JA1-6.5x38-E16
    Unit
    500
    JA1-6.5x64-E16 3113811319 6.5 16 250

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    64.0
    Clamp thickness
    0.5 - 54.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JA1-6.5x64-E16
    Unit
    250
    JA1-6.5x115-E16 3114311319 6.5 16 100

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    115.0
    Clamp thickness
    37.0 - 65.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JA1-6.5x115-E16
    Unit
    100
    JA1-6.5x145-E16 3114611319 6.5 16 100

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    145.0
    Clamp thickness
    70.0 - 95.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JA1-6.5x145-E16
    Unit
    100
