EJOT® self-tapping screw JA3-6.5

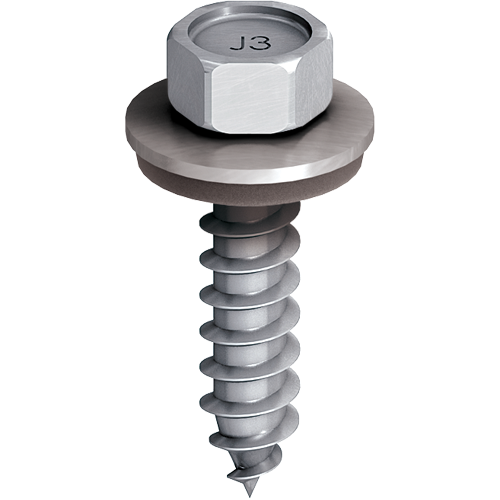

JA3-6,5_foto1

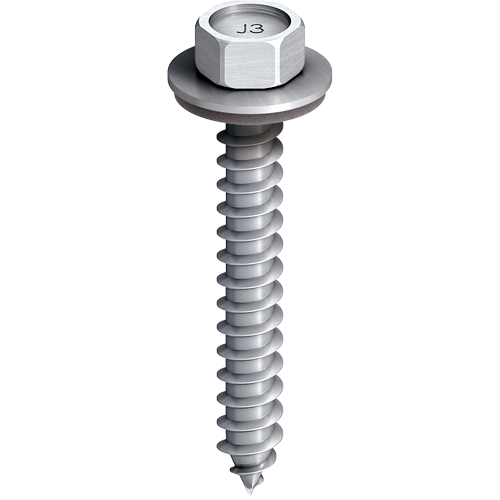

JA3-6,5_foto2

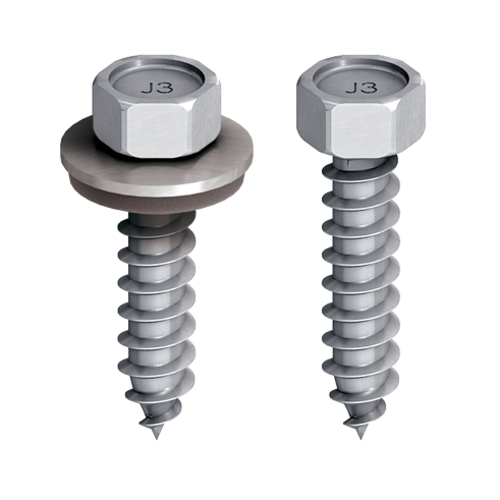

JA3-6,5_nw_2016

Specification

  • Applications

    • Fastening profiled steel sheet and sandwich panels to timber substructure
    • Fastening profiled steel/aluminium sheet to ≤ 2 mm steel substructure
    • Side lap stitching of profiled steel/aluminium sheet

  • Properties

    • A2 stainless steel
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Drive: Hexagon AF 3/8″
    • Ø screw: 6.5 mm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JA3-6.5x19-E16 3113111311 6.5 16 19.0 0.5 - 9.0 500

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    19.0
    Clamp thickness
    0.5 - 9.0
    Orderidentifier
    JA3-6.5x19-E16
    Unit
    500
    JA3-6.5x25-E16 3113211311 6.5 16 25.0 0.5 - 15.0 500

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.5 - 15.0
    Orderidentifier
    JA3-6.5x25-E16
    Unit
    500
    JA3-6.5x32-E16 3113311311 6.5 16 32.0 0.5 - 22.0 500

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    32.0
    Clamp thickness
    0.5 - 22.0
    Orderidentifier
    JA3-6.5x32-E16
    Unit
    500
    JA3-6.5x38-E16 3113411311 6.5 16 38.0 0.5 - 28.0 500

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    38.0
    Clamp thickness
    0.5 - 28.0
    Orderidentifier
    JA3-6.5x38-E16
    Unit
    500
    JA3-6.5x50-E16 3113611311 6.5 16 50.0 0.5 - 40.0 250

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    0.5 - 40.0
    Orderidentifier
    JA3-6.5x50-E16
    Unit
    250
    JA3-6.5x64-E16 3113811311 6.5 16 64.0 0.0 - 14.0 250

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    64.0
    Clamp thickness
    0.0 - 14.0
    Orderidentifier
    JA3-6.5x64-E16
    Unit
    250
    JA3-6.5x75-E16 3113911311 6.5 16 75.0 0.0 - 25.0 250

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    75.0
    Clamp thickness
    0.0 - 25.0
    Orderidentifier
    JA3-6.5x75-E16
    Unit
    250
    JA3-6.5x90-E16 3114111311 6.5 16 90.0 12.0 - 40.0 100

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    90.0
    Clamp thickness
    12.0 - 40.0
    Orderidentifier
    JA3-6.5x90-E16
    Unit
    100
    JA3-6.5x100-E16 3114211311 6.5 16 100.0 22.0 - 50.0 100

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    100.0
    Clamp thickness
    22.0 - 50.0
    Orderidentifier
    JA3-6.5x100-E16
    Unit
    100
    JA3-6.5x115-E16 3114311311 6.5 16 115.0 37.0 - 65.0 100

    Specifications

    ø
    6.5
    Ø Sealing Washer mm
    16
    Length
    115.0
    Clamp thickness
    37.0 - 65.0
    Orderidentifier
    JA3-6.5x115-E16
    Unit
    100
