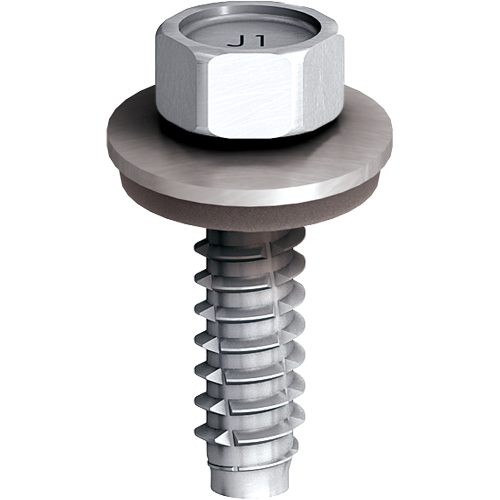

CORREMAKS® self-tapping screw JZ1-6.3

JZ1-6,3x22

Specification

  • Applications

    • Fastening profiled steel sheets to steel substructure in highly corrosive environments

  • Properties

    • Stainless steel HCR -1.4529
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Highest corrosion protection class

  • Technical specifications

    • Diameter: 6.3 mm
    • Drive: Hexagon AF 3/8"
    • Installation rotation speed: max. 400 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JZ1-6.3x22-E16 3111211319 6.3 16 22.0 0.0 - 7.0 500

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    22.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JZ1-6.3x22-E16
    Unit
    500
    JZ1-6.3x54-E16 3111511319 6.3 16 54.0 0.0 - 39.0 250

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    54.0
    Clamp thickness
    0.0 - 39.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JZ1-6.3x54-E16
    Unit
    250
    JZ1-6.3x70-E16 3111711319 6.3 16 70.0 3.0 - 55.0 250

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    70.0
    Clamp thickness
    3.0 - 55.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JZ1-6.3x70-E16
    Unit
    250
    JZ1-6.3x125-E16 3112411319 6.3 16 125.0 58.0 - 110.0 100

    Specifications

    ø
    6.3
    Ø Sealing Washer mm
    16
    Length
    125.0
    Clamp thickness
    58.0 - 110.0
    Fastener material
    Stainless Steel HCR - 1.4529
    Orderidentifier
    JZ1-6.3x125-E16
    Unit
    100
