EJOT PT® screw type DG 55-C

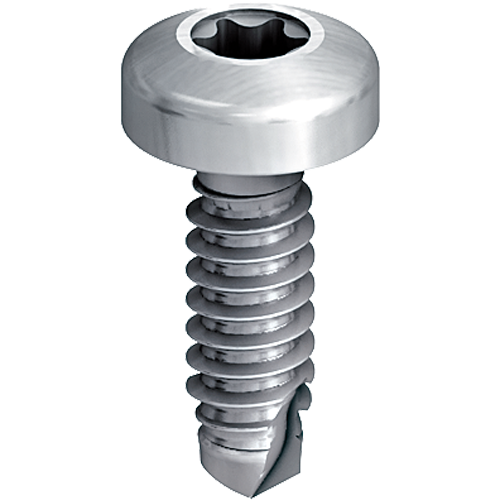

EJOT-PT-Bohrschraube-Typ-DG-50-16
Anwendung-PT_SCREW_DG_50

Specification

  • Applications

    • Direct fastening of T-bars to aluminium post and rail designs
    • Fastening of additional profiles, e.g. connecting profiles, expansion joints etc.

  • Properties

    • A2 stainless steel
    • For thread geometries optimised for aluminium

  • Technical specifications

    • Drilling capacity: up to 2.5 mm
    • Thread: DG 50
    • Drive: TX25
Orderidentifier Article Number ø mm Length mm Material Drive Unit
Self-drilling screw DG-50x16 7381108300 5.0 16.0 Stainless Steel TORX T25

Specifications

ø
5.0
Length
16.0
Material
Stainless Steel
Drive
TORX T25
Clamp thickness
8.0
Orderidentifier
Self-drilling screw DG-50x16
Unit
