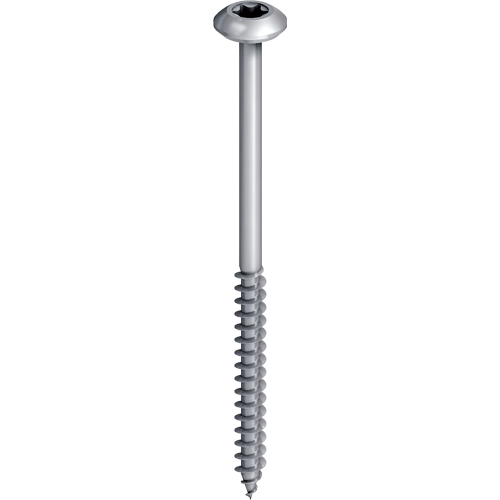

EJOT® Transom screw

Rahmenschraube_Kämpferschraube-5-0xL
Produktbild2

Specification

  • Applications

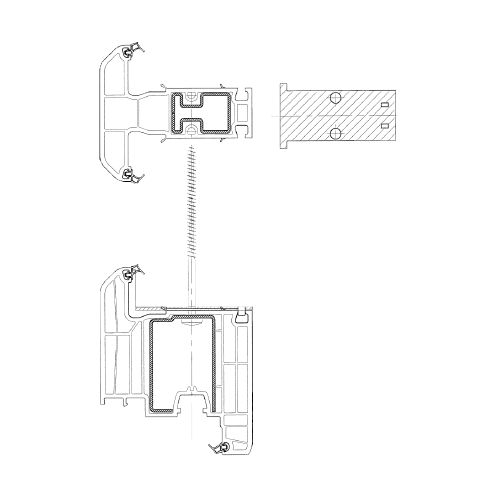

    • Transom fastening
    • Direct installation into timber and PVC

  • Properties

    • Partial Thread
    • Case-hardened steel

  • Technical specifications

    • Head diameter: 11.5 mm
    • Drive: T30

    Note

    Check pre-drilling, when installing into hard wood

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Transom screw 5.0x80/40 2290120601 5.5 80.0 Zinc plated, blue passivated

    Specifications

    ø
    5.5
    Length
    80.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Transom screw 5.0x80/40
    Unit
    Transom screw 5.0x100/55 2290121601 5.5 100.0 Zinc plated, blue passivated

    Specifications

    ø
    5.5
    Length
    100.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Transom screw 5.0x100/55
    Unit
