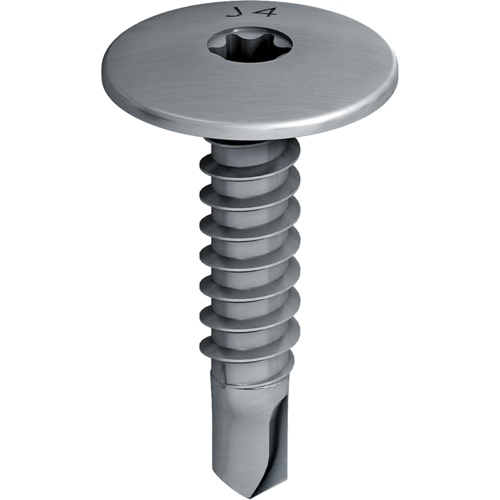

EJOT® self-drilling screw JT4-LT-3-5.5x25 KD16
Specification
-
Applications
- For fixing facade panels to 1.5-3.0 mm aluminium substructures
- Can be combined with LT fixed and floating point sleeves
Note
Please note the respective approval of the facade panel and the assembly instructions of the manufacturer.
-
Properties
- A2 stainless steel
- Pan head
Benefits
- To cover slotted holes and large pre-drill diameters
- Also available in RAL lacquering
- Flat screw head for aesthetic facade design
- Wobble-free fastening by using the LT tool
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity (tI pre-drilled) + tII: 1.5-3.0 mm
- Drive: Hexalobular drive T25
- Head diameter: 16 mm
- Head height: 2.0 mm
| Orderidentifier | Article Number | ø mm | Length mm | Fastener material | Unit |
|---|---|---|---|---|---|
| JT4-LT-3-5.5x25 KD16 | 7384207300 | 5.5 | 25.0 | Stainless Steel | 500 |
