ejotherm® STR H A2
Specification
-
Applications
Screw fastener for the corrosion resistant fixing of ETICS
with German DIBt approval- For Fermacell boards, cement particle boards, wooden substrates and metal Frame
- For a corrsion-free fastening
- For countersunk and surface fixed installation
- For homogeneous surfaces
- With German DIBt approval
-
Properties

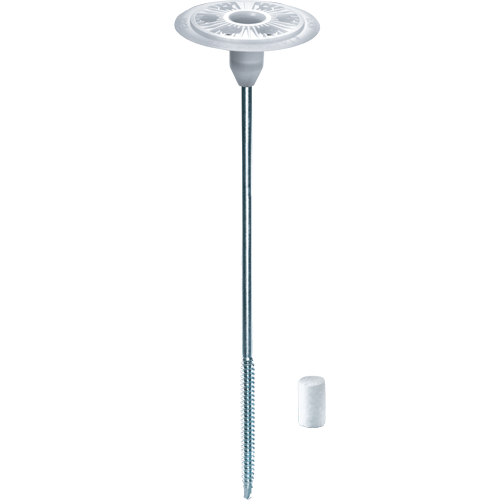

- Fastener, consistent of a A2 stainless screw with hardened drill point, included washer and an EPS sealing plug
- EJOT STR principle with ejotherm STR cap for homogeneous surfaces and even rendering - quick and easy without milling dust
- Countersunk installation in mineral wool insulation boards WAP-zg (type WV) in combination with ejotherm VT 2G
- No drilling necassary
- Surface fixed installation with ejotherm STR plug
- Permanent contact pressure
- 100% Setting control: the countersunk installation of the washer indicates safe anchorage
-
Technical specifications
- Screw diameter: 6 mm
- Washer diameter: 60 mm
- Screw-in depth: 30 - 40 mm
- Screw drive: TX25
- Point thermal transmission χ:
countersunk installation in timber substrates: 0.001 W/K
surface fixed installation in timber substrates: 0.002 W/K - German DIBt approval: Z-9.1-822
Tensile strength from the substrate:
- Solid wood, laminated timber,laminated beams or cross laminated timber made of softwood
Minimum screw-in depth: 35 mm oder 24 mm (embedment)
Designed load Fax,90,Rd: 0.94kN - OSB boards
Minimum screw-in depth: 15 mm (thread engagement)
Designed load Fax,90,Rd: 0.56kN - Synthetic resin bonded chipboard
Minimum screw-in depth: 16 mm (thread engagement)
Designed load Fax,90,Rd: 0.56kN - Cement particle board
Minimum embedment depth: 16 mm (thread engagement)
Designed load Fax,90,Rd: 0.56kN
ETICS products are only available from system suppliers
Filter
Selected filters
| Orderidentifier | Article Number | Washer diameter mm | Length mm | Construction way | Screw-in-/hammer-inanchor | Unit |
|---|---|---|---|---|---|---|
| ejotherm STR H A2 80 | 8711080666 | 60.0 | 80.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 100 | 8711100666 | 60.0 | 100.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 120 | 8711120666 | 60.0 | 120.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 140 | 8711140666 | 60.0 | 140.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 160 | 8711160666 | 60.0 | 160.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 180 | 8711180666 | 60.0 | 180.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 200 | 8711200666 | 60.0 | 200.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
||||||
| ejotherm STR H A2 220 | 8711220666 | 60.0 | 220.0 | countersank and surface fixed installation | screw-in-anchor | 100 |
Specifications
|
