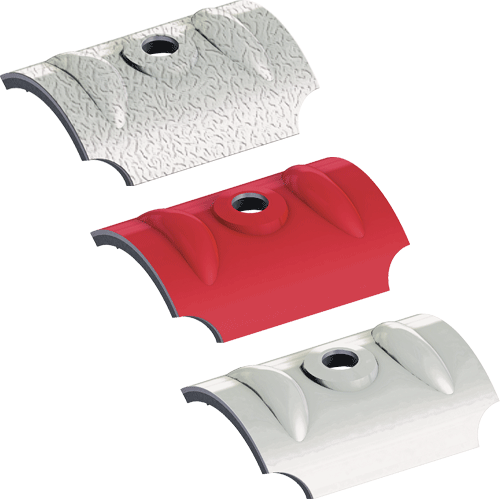

EJOT® ORKAN storm washer corrugated alu
Specification
-
Applications
- Crown fixing of corrugated profile sheet
- Crown fixing of light diffusing panels
-
Properties
- Optimised reinforcement beads
- Secure waterproofing
- Aluminium alloy mill finish, coloured (RAL)
- Storm washers are to be stored in a dry place until installation
-
Benefits
- Increased installation reliability
- High dimensional stability
- Optimum load transmission
- Sophisticated fastening system in combination with self-drilling
and self-tapping screws
Note
Only use screws with 16mm and 19 mm washer diameter. For determination of the clamp thickness please take the storm washer into account with 3 mm. The guidelines and installation instructions given by the profile and panel manufacturer are to be observed. Storm washers which are not mentioned are
special storm washers. Please note surcharges.
Filter
Select system
-
Blank/Stucco
Select unit
- alu mill finish
-

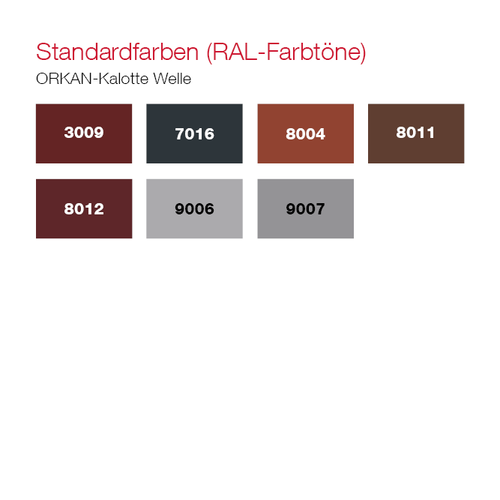

RAL
Select unit
- RAL7016
- RAL8012
- RAL9006
Selected filters
| Orderidentifier | Article Number | Radius mm | Head Colour | Unit |
|---|---|---|---|---|
| Storm washer W48 mill finish | 3047400110 | 48.0 | 500 | |
Specifications
|
||||
| Storm washer W24 mill finish | 3047700110 | 24.0 | 500 | |
Specifications
|
||||
| Storm washer W30 mill finish | 3050030000 | 30.0 | 500 | |
Specifications
|
||||
| ORKAN storm washer W24 Alu-blank VE100 | 3077700110 | 24.0 | 100 | |
Specifications
|
||||
| ORKAN storm washer W24 Alu-RAL 7016 VE100 | 3077725119 | 24.0 | 100 | |
Specifications
|
||||
| ORKAN storm washer W24 Alu-RAL 8012 VE100 | 3077740119 | 24.0 | 100 | |
Specifications
|
||||
| ORKAN storm washer W24 Alu-RAL 9006 VE100 | 3077784119 | 24.0 | 100 | |
Specifications
|
