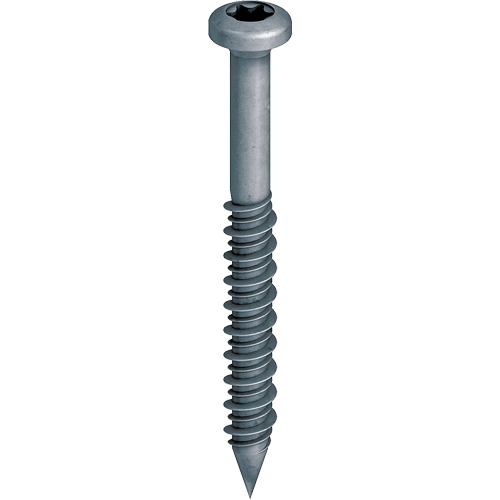

EJOT® concrete screw FBS-R-6.3

Betonschraube FBSR-6_3

Specification

  • Applications

    • To fix roofing membranes to concrete substructures
    • For combination with EJOT® stress plates

  • Properties

    • Case-hardened steel
    • Climadur coated – high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)

  • Technical specifications

    • Diameter: 6.3 mm
    • Embedment depth: ≥ 30 ≤ 45 mm
    • Nominal drill diameter: 5.0 mm
    • Drill hole depth: ≥ 45 mm
    • Drive: Hexalobular drive T30

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    FBS-R-6.3x35 5763035512 6.3 35.0 500

    Specifications

    ø
    6.3
    Length
    35.0
    Clamp thickness
    0.0 - 5.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x35
    Unit
    500
    FBS-R-6.3x60 5763060512 6.3 60.0 500

    Specifications

    ø
    6.3
    Length
    60.0
    Clamp thickness
    20.0 - 30.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x60
    Unit
    500
    FBS-R-6.3x80 5763080512 6.3 80.0 250

    Specifications

    ø
    6.3
    Length
    80.0
    Clamp thickness
    40.0 - 50.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x80
    Unit
    250
    FBS-R-6.3x100 5763100512 6.3 100.0 250

    Specifications

    ø
    6.3
    Length
    100.0
    Clamp thickness
    60.0 - 70.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x100
    Unit
    250
    FBS-R-6.3x120 5763120512 6.3 120.0 250

    Specifications

    ø
    6.3
    Length
    120.0
    Clamp thickness
    80.0 - 100.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x120
    Unit
    250
    FBS-R-6.3x140 5763140512 6.3 140.0 250

    Specifications

    ø
    6.3
    Length
    140.0
    Clamp thickness
    100.0 - 110.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x140
    Unit
    250
    FBS-R-6.3x160 5763160512 6.3 160.0 100

    Specifications

    ø
    6.3
    Length
    160.0
    Clamp thickness
    120.0 - 130.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x160
    Unit
    100
    FBS-R-6.3x180 5763180512 6.3 180.0 100

    Specifications

    ø
    6.3
    Length
    180.0
    Clamp thickness
    140.0 - 150.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x180
    Unit
    100
    FBS-R-6.3x220 5763220512 6.3 220.0 100

    Specifications

    ø
    6.3
    Length
    220.0
    Clamp thickness
    180.0 - 190.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x220
    Unit
    100
    FBS-R-6.3x260 5763260512 6.3 260.0 100

    Specifications

    ø
    6.3
    Length
    260.0
    Clamp thickness
    220.0 - 230.0
    Inner Hole Ø
    6.0
    Fastener material
    Carbon Steel
    Pilot Hole Ø
    5.0
    Orderidentifier
    FBS-R-6.3x260
    Unit
    100
