EJOT® concrete screw JBS-R-7.5

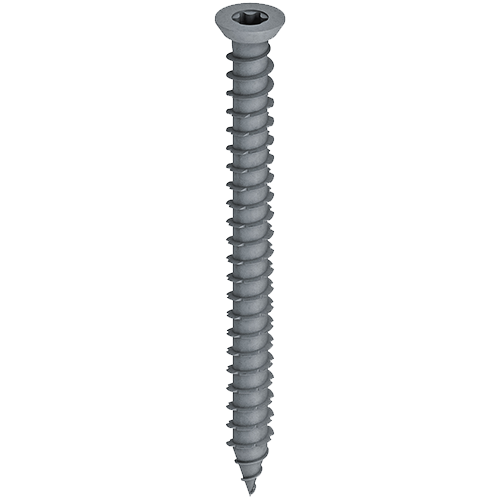

Produktbild

Specification

  • Applications

    • To fix roofing membranes to concrete substructures
    • For combination with EJOT stress plate EcoTek 50

  • Properties

    • Case-hardended steel
    • Climadur coated - high - quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)

  • Technical specifications

    • Diameter: 7.5 mm
    • Embedment depth ≥ 30 mm
    • Nominal drill diameter: 6.0 mm
    • Hole depth: ≥ 35 mm
    • Drive: hexalobular TX30

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    JBS-R-7.5x80 2231080609 80.0 100

    Specifications

    Length
    80.0
    Orderidentifier
    JBS-R-7.5x80
    Unit
    100
    JBS-R-7.5x120 2231120609 120.0 100

    Specifications

    Length
    120.0
    Orderidentifier
    JBS-R-7.5x120
    Unit
    100
    JBS-R-7.5x150 2231150609 150.0 100

    Specifications

    Length
    150.0
    Orderidentifier
    JBS-R-7.5x150
    Unit
    100
    JBS-R-7.5x210 2231210609 210.0 100

    Specifications

    Length
    210.0
    Orderidentifier
    JBS-R-7.5x210
    Unit
    100
