Folding blind rivet ECORIV® aluminium/aluminium

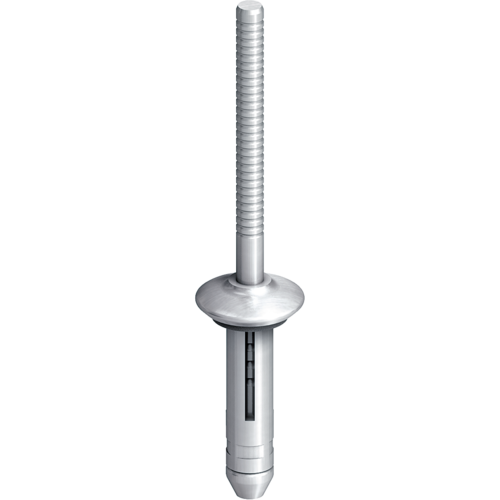

Presslaschenblindniet-ECORIV_Pos2

Specification

  • Applications

    • For side lap stitching of metal and profiled plastic sheets

  • Properties

    • Body made of aluminium (Al) with neoprene seal ring
    • Mandrel made of aluminium (Al)
    • Captive locked
    • ETA-22/0641

  • Note

    • Designed to expand forming individual claws on the underside of the application for maximum mechanical performance
    • 5.3 to 5.4mm diameter pilot hole

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Pilot Hole Ø mm Clamp thickness mm Unit
    Bulbtite rivet ECORIV ALU 5.2x17.5 9385641000 5.2 17.5 5.3 - 5.6 1.3 - 4.7 500

    Specifications

    ø
    5.2
    Length
    17.5
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    1.3 - 4.7
    Material
    Aluminium
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x17.5
    Unit
    500
    Bulbtite rivet ECORIV ALU 5.2x20.5 9385642000 5.2 20.5 5.3 - 5.6 3.0 - 7.7 500

    Specifications

    ø
    5.2
    Length
    20.5
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    3.0 - 7.7
    Material
    Aluminium
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x20.5
    Unit
    500
    Bulbtite rivet ECORIV ALU 5.2x22.2 9385643000 5.2 22.2 5.3 - 5.6 4.8 - 9.5 500

    Specifications

    ø
    5.2
    Length
    22.2
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    4.8 - 9.5
    Material
    Aluminium
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x22.2
    Unit
    500
    Bulbtite rivet ECORIV ALU 5.2x25.4 9385644000 5.2 25.4 5.3 - 5.6 8.0 - 12.7 500

    Specifications

    ø
    5.2
    Length
    25.4
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    8.0 - 12.7
    Material
    Aluminium
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x25.4
    Unit
    500
    Bulbtite rivet ECORIV ALU 5.2x28.6 9385645000 5.2 28.6 5.3 - 5.6 11.1 - 16.9 500

    Specifications

    ø
    5.2
    Length
    28.6
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    11.1 - 16.9
    Material
    Aluminium
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x28.6
    Unit
    500
    Bulbtite rivet ECORIV ALU 5.2x31.8 9385646000 5.2 31.8 5.3 - 5.6 14.3 - 19.1 250

    Specifications

    ø
    5.2
    Length
    31.8
    Pilot Hole Ø
    5.3 - 5.6
    Clamp thickness
    14.3 - 19.1
    Material
    Aluminium
    Orderidentifier
    Bulbtite rivet ECORIV ALU 5.2x31.8
    Unit
    250
