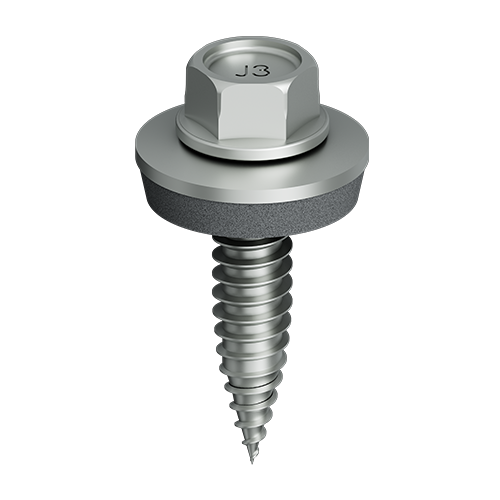

EJOFAST® self-drilling screw JF3-2-5.5

jf3-2-5,5-e16_500x500

Specification

  • Applications

    Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:

    • Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
    • Fixing wind deflector sheets to profiled elements

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Non-skid application
    • Fastening with reduced swarf
    • Excellent gripping properties

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 0.88 + 0.88 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm
JF6 made of A4 stainless steel upon request

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JF3-2-5.5x25-E16 3597211391 5.5 16 25.0 0.0 - 7.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JF3-2-5.5x25-E16
    Unit
    500
    JF3-2-5.5x25-E16 PU100 6597211391 5.5 16 25.0 0.0 - 7.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JF3-2-5.5x25-E16 PU100
    Unit
    100
    JF3-2-5.5x35-E16 3597511391 5.5 16 35.0 0.0 - 17.0 500

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    35.0
    Clamp thickness
    0.0 - 17.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JF3-2-5.5x35-E16
    Unit
    500
