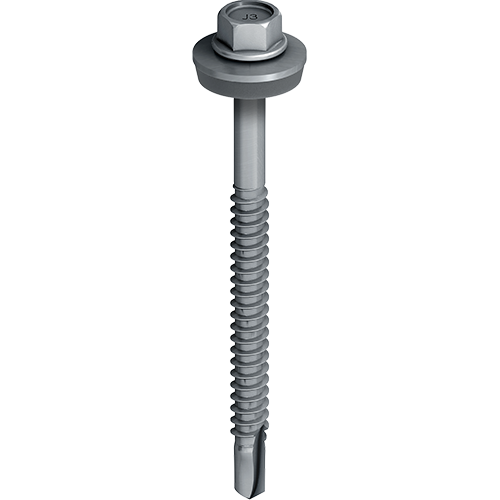

EJOT® self-drilling screw JT3-6-5.5
Specification
-
Applications
- Fastening profiled steel sheets to 1.5 – 4 mm steel substructure
- Fastening profiled aluminium sheets and sandwich panels to 1.5 – 4 mm steel substructure
-
Properties
- A2 stainless steel with hardened drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
-
Technical specifications
- Diameter: 5.5 mm
- Drilling capacity tI + tII: 1.0 + 5.0 mm / 2.0 + 4.0 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1300 rpm
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Ø Sealing Washer mm | Length mm | Clamp thickness mm | Fastener material | Unit |
|---|---|---|---|---|---|---|---|
| JT3-6-5.5x25-E16 | 3572211361 | 5.5 | 16 | 25.0 | 0.0 - 7.0 | Stainless Steel | 500 |
Specifications
|
|||||||
| JT3-6-5.5x25-E16 VE100 | 6572211361 | 5.5 | 16 | 25.0 | 0.0 - 7.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x30-E16 | 3572311361 | 5.5 | 16 | 30.0 | 0.0 - 11.0 | Stainless Steel | 500 |
Specifications
|
|||||||
| JT3-6-5.5x30-E16 PU100 | 6572311361 | 5.5 | 16 | 30.0 | 0.0 - 11.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x35-E16 | 3572511361 | 5.5 | 16 | 35.0 | 0.0 - 16.0 | Stainless Steel | 500 |
Specifications
|
|||||||
| JT3-6-5.5x35-E16 PU100 | 6572511361 | 5.5 | 16 | 35.0 | 0.0 - 16.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x50-E16 | 3592811361 | 5.5 | 16 | 50.0 | 0.0 - 31.0 | Stainless Steel | 250 |
Specifications
|
|||||||
| JT3-6-5.5x50-E16 PU100 | 6592811361 | 5.5 | 16 | 50.0 | 0.0 - 31.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x70-E16 | 3593911361 | 5.5 | 16 | 70.0 | 22.0 - 51.0 | Stainless Steel | 250 |
Specifications
|
|||||||
| JT3-6-5.5x70-E16 PU100 | 6593911361 | 5.5 | 16 | 70.0 | 22.0 - 51.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x90-E16 | 3596111361 | 5.5 | 16 | 90.0 | 42.0 - 71.0 | Stainless Steel | 250 |
Specifications
|
|||||||
| JT3-6-5.5x90-E16 VE100 | 6596111361 | 5.5 | 16 | 90.0 | 42.0 - 71.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x110-E16 | 3596211361 | 5.5 | 16 | 110.0 | 62.0 - 91.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x130-E16 | 3596311361 | 5.5 | 16 | 130.0 | 82.0 - 111.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x150-E16 | 3596411361 | 5.5 | 16 | 150.0 | 102.0 - 131.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x170-E16 | 3596511361 | 5.5 | 16 | 170.0 | 122.0 - 151.0 | Stainless Steel | 100 |
Specifications
|
|||||||
| JT3-6-5.5x190-E16 | 3596611361 | 5.5 | 16 | 190.0 | 142.0 - 171.0 | Stainless Steel | 100 |
Specifications
|
