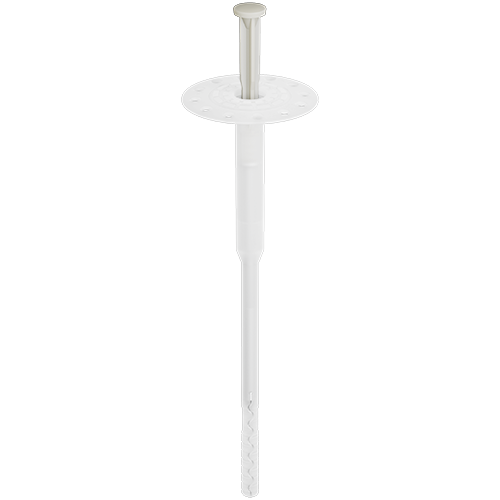

ejotherm® H1

Applications

• Approved for all material classes (A, B, C, D, E)
• For all insulation boards
• For surface fixed installation
• With European Technical Assessment (ETA)

Properties

• Approved for concrete, solid and perforated masonry
• Solid steel nail (break-proof)
• Low profile washer face
• Plastic injection element to reduce thermal transmission (0,001 W/K)
• Can be used with an additional spreader washer
• KShort embedment depth, reduced drilling
• High loads for your security
• Economic anchor usage
• Premounted nail for quick installation
• New: Optimised anchor extension zone for higher load-bearing
• New: Increased length spectrum up to 325 mm

Technical specifications

• Anchor diameter: 8 mm
• Washer diameter: 60 mm
• Drill hole depth h
• material class A, B, C, D ≥ 35 mm
• material class E ≥ 55 mm
• Embedment depth h
• material class A, B, C, D ≥ 25 mm
• material class E ≥ 45 mm
• Point thermal transmission _X: 0.001 W/K
• Use categories acc. to ETA: A, B, C, D, E
• European Technical Assessment: ETA-11/0192

Characteristic loads:

• Concrete C 12/5 as per EN 206:2013+A1:2016: 0,9 kN
• Concrete C 20/25 - C 50/60 as per  EN 206:2013+A1:2016: 1,2 kN
• Concrete C 20/25 - C 50/60 as per EN 206:2013+A1:2016 thin Concrete members (thin sheet): 1,2 kN
• Clay bricks, MZ as per EN 771-1:2011+A1:2015: 1,2 kN
• Sand-lime-solid bricks KS as per EN 771-2:2011+A1:2015: 1,2 kN
• Vertically perforated clay bricks, HLz as per EN 771-1:2011+A1:2015: 0,75²⁾ kN
• Sand-lime perforated bricks KSL as per EN 771-2:2011+A1:2015: 1,2³⁾ kN
• lightweight aggregate concrete LAC, as per EN 1520:2011, EN 771-3:2011+ A1:2015: 1,1 kN
• Autoclaved aerated concrete as per EN 771-4:2011+ A1:2015: 0,9 kN

²⁾ The value applies only for outer web thickness ≥ 11 mm; otherwise the characteristic loads resistance shall be determined by job site pull-out tests.
³⁾The value applies only for outer web thickness ≥ 20 mm; otherwise the characteristic loads resistance shall be determined by job site pull-out tests.
