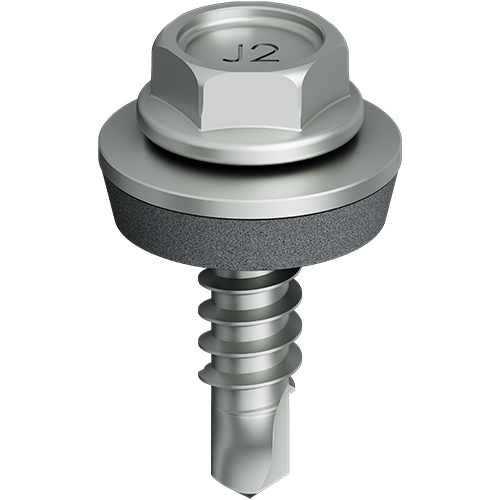

EJOT® self-drilling screw JT2-3-4.8

picture-jt2-3-4-8

Specification

  • Applications

    • Fastening profiled steel sheets to 2 mm steel substructure
    • Side lap stitching of profiled steel sheets
    • Suitable for installation with the EJOFAST® JF screwdriver

  • Properties

    • Case-hardened steel, zinc-plated

  • Technical specifications

    • Diameter: 4.8 mm
    • Drill capacity tI + tII: 1.5 + 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JT2-3-4.8x19 3592200634 4.8 0 - none 19.0 0.0 - 11.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 11.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-3-4.8x19
    Unit
    500
    JT2-3-4.8x19-V14 3592251634 4.8 14 19.0 0.0 - 9.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    14
    Length
    19.0
    Clamp thickness
    0.0 - 9.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-3-4.8x19-V14
    Unit
    500
    JT2-3-4.8x19 PU100 6592200634 4.8 0 - none 19.0 0.0 - 11.0 100

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    19.0
    Clamp thickness
    0.0 - 11.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-3-4.8x19 PU100
    Unit
    100
    JT2-3-4.8x25 3592400634 4.8 0 - none 25.0 0.0 - 17.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    25.0
    Clamp thickness
    0.0 - 17.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-3-4.8x25
    Unit
    500
    JT2-3-4.8x38 3592600634 4.8 0 - none 38.0 0.0 - 27.0 500

    Specifications

    ø
    4.8
    Ø Sealing Washer mm
    0 - none
    Length
    38.0
    Clamp thickness
    0.0 - 27.0
    Fastener material
    Carbon Steel
    Orderidentifier
    JT2-3-4.8x38
    Unit
    500
