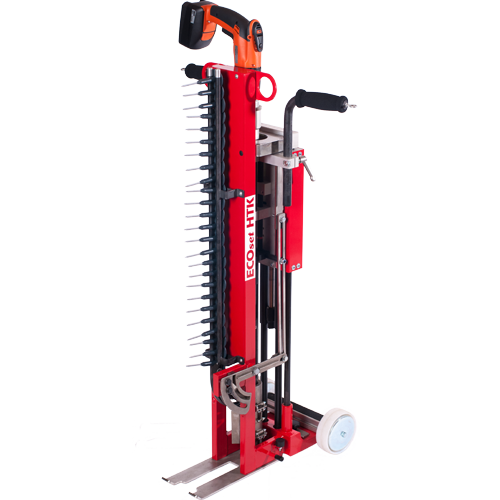

EJOT® Installation tool ECOset HTK

Applications

• For safe, fast and efficient installation of EJOT^® HTK 2G stress plates with EJOT Dabo^® screws TKR, TKE and VHT-R

Note

• HTK 2G-M stress plate can be processed up to 145 mm in length

Included in delivery

• 1 installation tool (includes screwgun and H2-M6x35 mm bit)
• 1 spare battery
• 1 tool kit
• 1 operating manual

Properties

• Variable length combinations with fast and direct locking adjustment
• HTK collator change in seconds (25 pcs. pre-collated)
• Due to the depth control screws can not be overwound

Technical specifications

220 V drive

• Power consumption: 450 W
• Power output: 250 W
• Load speed: 0-2000 rpm
• Idle speed: 0-2500 rpm
• Max. torque (hard/soft): 16/- Nm

18 V drive

• Battery voltage: 18 V
• Battery capacity: 4.0 Ah
• Load speed: 0-1500 rpm
• Idle speed: 0- 1700 rpm
• Max. torque (hard/soft): 30/10 Nm
